    Product information _ Home > Product > SFM-2

    Product information product img

    SFM-2

    Usage & Applications

    Japanese fencing school, gymnasium. Other used a multi-purpose

    patent registration no. 10-0789394

    • Patent Number - 2007-0032061
    • Patent Name - Shock absorber floor gym
    • Application Date - 31 / 03 / 2007
    • registration date - 20 / 12 / 2007
    autocad file download

    Features

    1. It is made of coil spring and its displacement is bigger than rubber, so that it has high efficiency of vibration isolation. Channel bracket with level control bolt makes it easy to control the vertical level.
    2. It is easy to control the level when controlling it with the control bolt after joist is assembled on the bracket. Also it is for patent purposes.
    Usage Spring constant
    (kg/mm)     		Spring Rated Capacity
    (kg)     		Prefabricated A
    (kg)    		 Range of accommodation
    (m/m)    		 Test A

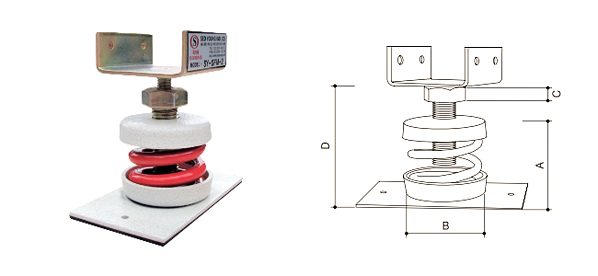

    (kg)    		 Note DIMENSION(mm)
    A B C D
    Multi-purpose 34.4 300 30 82~150 100 Made to Order 76 68 20 82

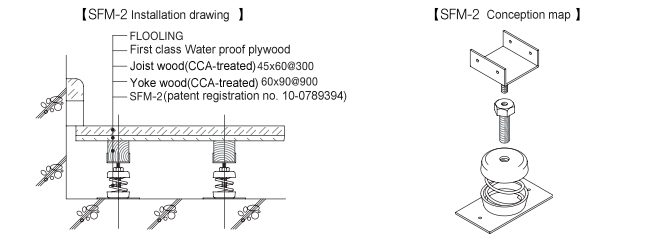

    Installation drawing
