Vibration Isolating Rubber Hanger
Usage & Applications
It is applied to floating ceiling system for broadcasting station, ceiling support such as pipe or duct in air handling unit
Product information _ Home > Product > Vibration Isolating Rubber Hanger
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products
Features
- It is resistant to ozone and heat, made of CR synthetic rubber resistant to oil and chemicals
- It has no surging in springs and is highly efficient in resonance as controlling high frequency vibration and reducing resonance of machine or structures.

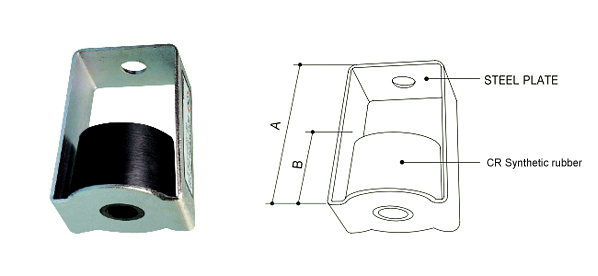

Dimension & Selection guide by loads
| TYPE | Allowable loads (kgf) |
Maximum displacement load (㎜) |
Spring constant (kg/㎜) |
DIMENSION(mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ROD | ||||
| RH-A | 60~120 | 4.5 | 27.0 | 80 | 36 | Φ55 | 65 | 35 | 58 | M10 |
| RH-AB | 100~180 | 5.8 | 31.0 | 95 | 46 | Φ65 | 86 | 50 | 67 | M12 |
| RH-B | 170~230 | 6.4 | 36.0 | 110 | 56 | Φ76 | 86 | 50 | 85 | M16 |
| RH-C | 250~350 | 7.0 | 50.0 | 115 | 58 | Φ90 | 110 | 60 | 94 | M16 |
Installation drawing
