YL-Mount
Usage & Applications
- vibration isolator for impulse machine such as machine press, forging machine, etc.
- vibration isolator for industrial machine such a catapult, printing machine, wire rod making machine, standby generator, transformer, etc.
- vibration isolator for machine tool such as lathe, grinder, milling M/C
Features

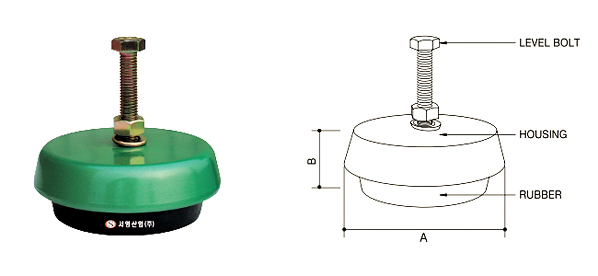

Housing is made of rigid steel plate and bolt is attached in the middle which is easy to install and controls the level. The bottom of rubber is composed with the surface and circle shaped rib to block impulse vibration and solid-borne sound and to prevent slip. It is vibration isolating equipment which most economically blocks vibration from machine tool and extends the life of equipment by reducing vibration accelerated by the vibration of equipment.
Dimension & Selection guide by loads
TYPE |
Rated Capacity(kgf) |
Hardness |
Spring constant(kg/mm) |
Deflection(mm) |
DIMENSION(mm) |
A |
B |
BOLT |
YL-120 |
350 |
60±5
|
87 |
4.0
|
36 |
58 |
M12 |
YL-160 |
800 |
60±5 |
254 |
3.2 |
58 |
85 |
M16 |
YL-230
|
2500
|
60±5
|
770 |
3.3
|
58 |
94 |
M24 |
