YA-TYPE Rubber Mount
Usage & Applications
- It is vibration isolator for small pump, an air blower, air conditioning machine
- equipment of low excitation force
Features

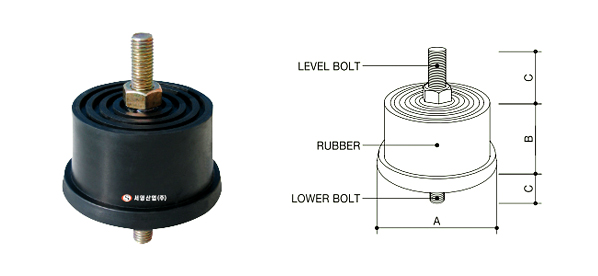

It is cylindrical rubber mount installed up and down reinforcement plate inside. It is thicker than other pads and high vibration Isolation performance in more or less 1000 rpm.
It is made of CR (NEOPRENE) synthetic rubber which is resistant to oil and ozone. It is easy to install because of its level and lower bolt on the mount’s upper and lower side.
| Model |
Material quality |
Speclal Note |
| Level bolt |
SS400 |
KS B 1002 |
| Rubber |
CR(Chloroprene) |
KS M 6617 |
| Lower bolt |
SS400 |
KS B 1002 |
Dimension & Selection guide by loads
| TYPE |
Rated Capacity
(kgf) |
Hardness |
spring constant
(kgf/mm) |
Deflection
(mm) |
DIMENSION(mm) |
| A |
B |
C |
BOLT |
| YA-40 |
90~130 |
60±5 |
23.0 |
5.7 |
54 |
38 |
30 |
M10 |
| YA-55 |
120~280 |
60±5 |
40.0 |
7.0 |
64 |
50 |
37 |
M12 |
| YA-75 |
250~400 |
60±5 |
65.0 |
6.2 |
90 |
50 |
37 |
M12 |
| YA-100 |
350~650 |
60±5 |
102.0 |
6.4 |
105 |
50 |
38 |
M16 |
