Anti Vibration Spring Hangers
Usage & Applications
It is used as floating ceiling system for anechoic room, broadcasting station, etc and anti vibration and support for DUCT or pipe line in Machine room.
Product information _ Home > Product > Anti Vibration Spring Hangers
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products
Features
- It is designed and produced to block vibration from air handling system or stress from contraction and expansion in building structure.
- It is produced in series with coil spring and neoprene and effective isolating of vibration and noise.
- SH-TYPE is preset about 60% of bearing load and easy to install.
It is generally powder-coated and the color is green. For ROD bolt and NUT, WASHER, the height is settled on building spot and determined by the purchase of a builder. It is best for anti vibration hanger for hanging fan.
Dimension & Selection guide by loads
| TYPE | Rated Capacity(kgf) | Deflection (mm) |
DIMENSION(mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | Level Bolt | |||
| SH-10 / SH-50 SH-100 / SH-150 |
10 / 50 100 / 150 |
25 | 173 | 33 | 88 | 76 | 82 | 50 | 81 | 45 | M10 |
| SH-300 | 300 | 25 | 220 | 48 | 126 | 100 | 108 | 60 | 91 | 67 | M12 |
| SH-500 | 500 | 25 | 240 | 48 | 141 | 100 | 110 | 60 | 91 | 67 | M16 |

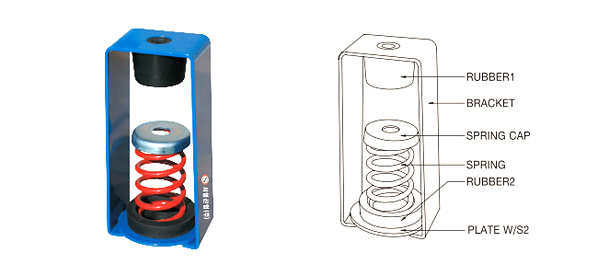

Installation drawing
