Usage & Applications
- It is used for a lightly loaded high-speed Machine over 1800RPM which requires more than 90% of vibration isolation efficiency
- It is used as vibration isolator for electric generators, air compressor, refrigerating machine, conditioning equipment.
- It supports pipe and mechanical equipment
Features
- It is vibration isolation PAD made with CR (Neoprene) synthetic rubber which is highly durable and resistant to oil, ozone, and wear.
- It is best for isolating high loads than light.
- It is waffle-shaped to prevent slips on the surface.
- Vertical deposition is available when high efficient vibration isolating is needed
- Inside damping efficiently controls high-frequency vibration and resonance

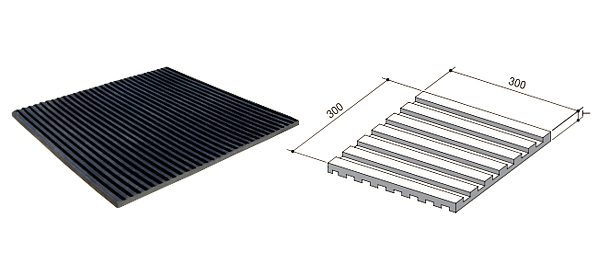

Dimension & Selection guide by loads
| TYPE |
Maximum
loads(kgf) |
Maximum
displacement load(mm) |
DIMENSION(mm) |
| Hardness |
A |
B |
thickness(T) |
| SY-308 |
4,680 |
2.4 |
60±5 |
300 |
300 |
8 |
| SY-312 |
7,020 |
3.6 |
60±5 |
300 |
300 |
12 |
| SY-315 |
8,775 |
4.5 |
60±5 |
300 |
300 |
15 |
| SY-320 |
29,250 |
15.0 |
60±5 |
300 |
300 |
20 |
| SY-350 |
46,800 |
6.0 |
60±5 |
300 |
300 |
50 |
