PPM
Usage & Applications
- It is used as noise and vibration isolator for air handling unit and machine room.
- It blocks noise, vibration and impact transferred to other major areas.
Product information _ Home > Product > PPM - Plywood Panel System
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products
Features
- It blocks noise from air handling unit and machine room. And it blocks and absorbs outdoor and indoor vibration, impact and noise.
- It is easy to construct and forms dual slab without raising slab.
Product Composition
- Neoprene synthetic rubber
- sound absorbing board (80kg/㎥, 50T)
- water resistant plywood(12mm)
Frequency noise transmission loss(dB)
| Frequency(Hz) | 63 | 125 | 250 | 500 | 1K | 2K | 4K |
|---|---|---|---|---|---|---|---|
| noise transmission loss | 54 | 59 | 73 | 83 | 89 | 97 | 106 |

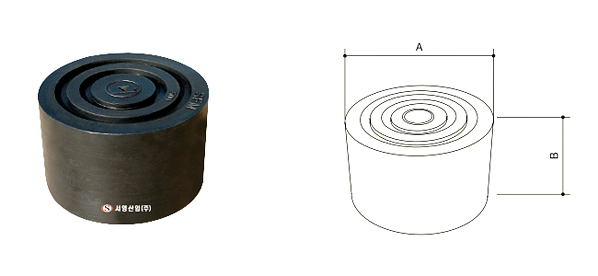

Dimension
| TYPE | Rated Capacity(kgf) | Deflection(mm) | Hardness | DIMENSION(mm) | |
|---|---|---|---|---|---|
| A | B | ||||
| PPM-250 | 250 | 9.0 | 60±5 | Φ60 | 50 |
| PPM-500 | 500 | 10.0 | 60±5 | Φ80 | 50 |
Installation drawing
