It is used as vibration isolator for pump, refrigerating machine, compressor, anti vibration for electric generator. Also it is used as vibration isolator air conditioning machine. Anti vibration for equipment with huge horizontal reactions

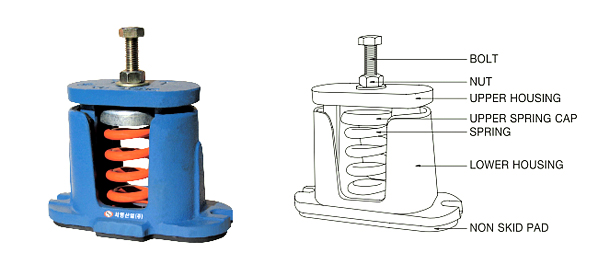

It is close type spring mount and placed between upper and lower housings. Anker hole is on the lower hosing. The upper housing is tapped and has spring cap with level control bolt guide groove composed of level bolt and nut. Anti-frictioner is attached between upper and lower housing which reduces friction generated by up and down, left and right displacements during equipment driving. On the bottom of housing, CR PAD is attached to improve the weakness of spring with high frequency transmission by surging effect. Spring is easy to find as encoded by application load and painted.
| TYPE | Rated Capacity (kgf) |
Deflection (mm) |
DIMENSION(mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | H | Level Bolt | |||
| SMB-50 SMB-100 |
50 100 |
25 | 102 | 106 | 15 | 125 | 115 | 60 | 10 | M10 |
|
SMB-150 SMB-200 SMB-300 |
150 200 300 |
25 | 152 | 147 | 18 | 180 | 158 | 76 | 12 | M12 |
| SMB-500 SMB-750 SMB-1000 |
500 750 1000 |
25 | 173 | 165 | 20 | 200 | 187 | 95 | 12 | M16 |
| SMB-1500 SMB-2000 |
1500 2000 |
25 | 250 | 181 | 20 | 283 | 270 | 113 | 12 | M16 |
