Rubber Chip PAD
Usage & Applications
the floor of the classroom, kindergarten, Aerobics center, Gymnasium. Other used a multi-purpose
Product information _ Home > Product > Rubber Chip PAD
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products

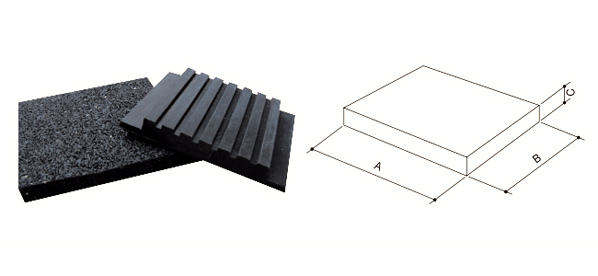

Features
- It is made of rubber chip and highly effective for isolating vibration of light load. It is available customized sizes. (The image above represents existing standard)
- Its restoring force is over 90% of and rebound resilience is 40%.
Dimension
| Model | Material quality | DIMENSION(mm) | |||
|---|---|---|---|---|---|
| A | B | C | D | ||
| Rubber Chip PAD | Rubber Chips | 70 | 60 | 10T | Made to Order |
| Rubber Chip PAD | Rubber Chips | 300 | 300 | 15T | Made to Order |
| Rubber Chip PAD | Rubber Chips | 300 | 300 | 20T | Made to Order |
| Rubber Chips PAD | Rubber Chips | 500 | 500 | 50T | Made to Order |

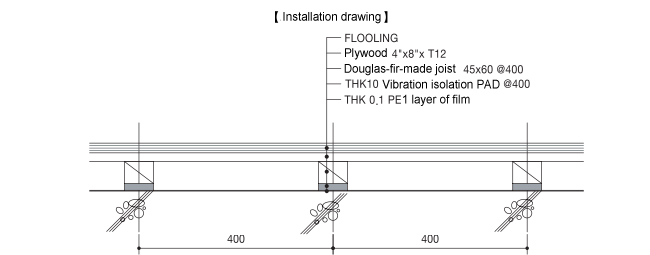

Installation drawing
