Product information product img

60*20T

Usage & Applications

Gymnasium, health place, Aerobics center And so on

autocad file download

Features

  1. It is neoprene rubber vibration isolator. It is durable and resistant to oil and ozone. It is made of rubber and damps, therefore minimizes vibration during resonance.
  2. Rib under the yoke joist is designed to optimize the efficiency of anti vibration.
  3. Restoring force is over 99% and rebounding force 55%.

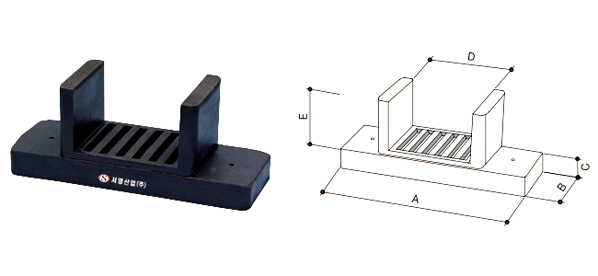

Dimension

Model Hardness Spring constant (kg/mm) DIMENSION(mm)
A B C D E
60×20T 55′ 109 145 50 20 60 40

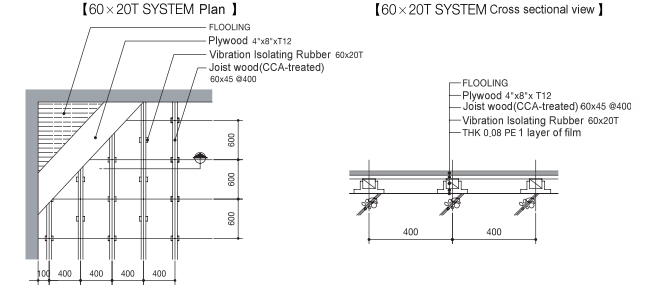

Installation drawing
