AFM
Usage & Applications
multi-purpose gymnasium, stage, Reverberation chamber, Studio And so on
Product information _ Home > Product > AFM
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products
Features
- It is the complexions of vibration isolating rubber mount with neoprene and channel bracket steel board.
- It is durable and resistant to ozone, abrasion and oil. It is a snubber used to prevent mental and physical exhaustion and physiological fatigue, having less vibration and impact to an athlete during the game.
Product Composition
- vibration isolating rubber mount
- channel bracket
- control bolt (available customized sizes)

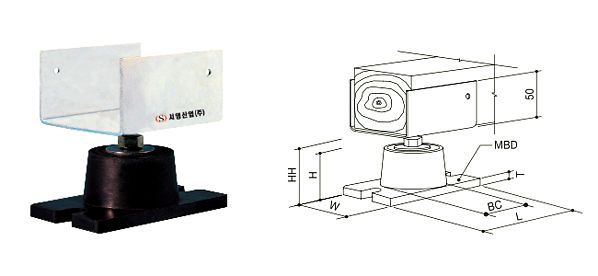

Load selection guide & Dimension
| Model | Service loads(kg) | Static displacement(mm) | Maximum height(HH) | Fixed altitude(H) | W | L | BC | T | MBD |
|---|---|---|---|---|---|---|---|---|---|
| AFM-60 | 100 | 5.0±1 | 100 | 50 | 70 | 120 | 90 | 10 | 12Φ |
| AFM-80 | 200 | 5.0±1 | 130 | 51 | 82 | 146 | 124 | 10 | 13Φ |
| AFM-100 | 400 | 5.0±1 | 130 | 60 | 110 | 175 | 150 | 12 | 16Φ |
| AFM-120 | 800 | 5.0±1 | 132 | 60 | 120 | 206 | 179 | 10 | 16Φ |

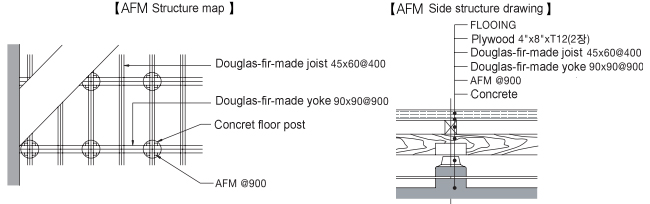

Installation drawing
