90*40T
Usage & Applications
Gymnasium, Stage, Studio, dead room And so on
Product information _ Home > Product > 90*40T
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products
Features
- It is neoprene rubber vibration isolator. It is durable and resistant to oil and ozone. It is made of rubber and damps, therefore minimizes vibration during resonance.
- Rib under the yoke joist is designed to optimize the efficiency of anti vibration.
- Restoring force is over 99% and rebounding force 50%.

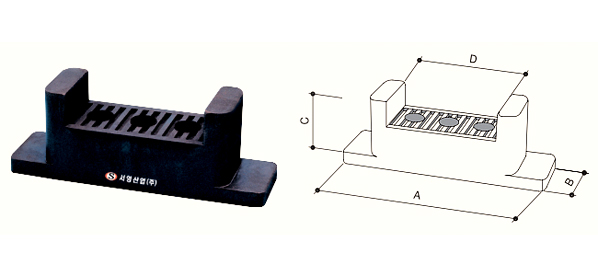

Dimension
| Model | Hardness | Spring constant(kg/mm) | DIMENSION | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| 90×40T | 55˚ | 59 | 178 | 50 | 40 | 90 |
| 105×40T | 55˚ | 59 | 178 | 50 | 40 | 105 |

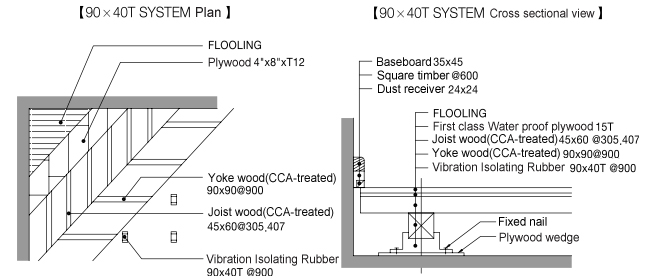

Installation drawing
