Wall Vibration Isolating Rubber
Usage & Applications
It is one of our best products for dual wall.
Product information _ Home > Product > Wall Vibration Isolating Rubber
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products
Features
- It blocks structural borne noise by isolating the range of 63Hz~500Hz caused by dual floor and ceiling.
- After its installation, dual wall can maximize the transmission loss in mid and high frequency and easy to install.

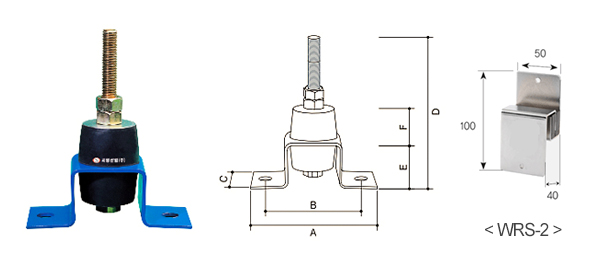

Dimension
| TYPE | DIMENSION(mm) | BOLT | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| WRS-A | 123 | 95 | 55 | 145 | 45 | 28 | M12 |
| WRS-AB | 147 | 110 | 65 | 150 | 105 | . | M12 |
* Bolt length is custom-made after look at the field.
Dimension & Selection guide by loads
| TYPE | Axial Restraintdeflection | maximum wall limit weight(kg) | 10Hz wall limit weight(kg) | |||
|---|---|---|---|---|---|---|
| C(kg) | D(mm) | C(kg) | D(mm) | |||
| WRS-A | 30 | 3.0 | 40 | 4 | 120 | 25 |
| WRS-AB | 150 | 3.0 | 200 | 4 | 600 | 170 |
| TYPE | Floating Floor Deflection or Resistance by Vertical movement | |||||||
|---|---|---|---|---|---|---|---|---|
| C (kg) | D (mm) | C (kg) | D (mm) | C (kg) | D (mm) | C (kg) | D (mm) | |
| WRS-A | 4 | 1.5 | 8 | 3 | 12 | 4.5 | 16 | 6.0 |
| WRS-AB | 26 | 1.5 | 52 | 3 | 78 | 4.5 | 84 | 6.0 |
C : Capacity / D : Deflection
