    Product information _ Home > Product > Super PAD

    Product information product img

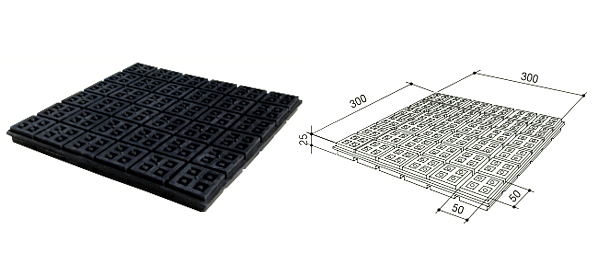

    Super PAD

    Usage & Applications

    1. It is used for a lightly loaded high-speed Machine over 1800RPM which requires more than 90% of vibration isolation efficiency
    2. It is used as vibration isolator for electric generators, air compressor, refrigerating machine, conditioning equipment.
    3. It supports pipe and mechanical equipment
    autocad file download

    Features

    1. It is vibration isolation PAD made with CR (Neoprene) synthetic rubber which is highly durable and resistant to oil, ozone, and wear.
    2. It is best for isolating light loads than high.
    3. It is waffle-shaped to prevent slips on the surface.
    4. Vertical deposition is available when high efficient vibration isolating is needed
    5. Inside damping efficiently controls high-frequency vibration and resonance

    Dimension & Selection guide by loads

    TYPE Maximum
    loads(kgf)    		 Maximum
    displacement load(mm)    		 Hardness(Hs)
    Super PAD (50x 50x25) 100 3.0 60±5
    Super PAD (100x100x25) 400 3.0
    Super PAD (150x150x25) 900 3.0
    Super PAD (300x300x25) 3600 3.0
    Super PAD (500x500x25) 10,000 3.0
