45*15T
Usage & Applications
Gymnasium, health place, Aerobics center And so on
Product information _ Home > Product > 45*15T
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products
Features
- It is neoprene rubber vibration isolator. It is durable and resistant to oil, ozone and wear. It is made of rubber and damps, therefore minimizes vibration during resonance.
- Rib under the yoke joist is designed to optimize the efficiency of anti vibration.
- Restoring force is over 90% and rebounding force 50%.

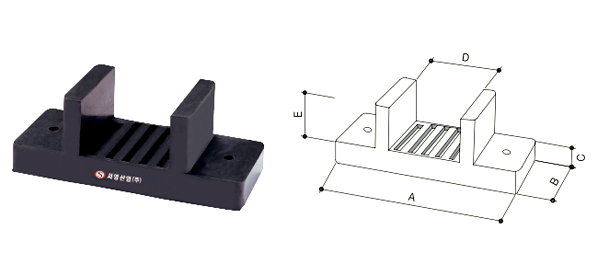

Dimension
| Model | Hardness | Spring constant(kg/mm) | DIMENSION | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| 45×15T | 55˚ | 196 | 120 | 50 | 15 | 45 | 45 |

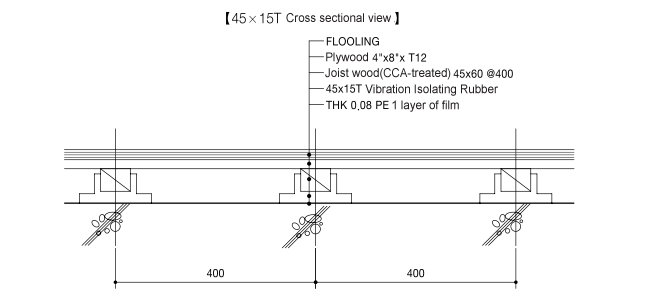

Installation drawing
