Usage & Applications
- It uses an object for leveling. The range of the length between upper and lower side is 25~50mm.
- It is applied under the floor of classroom or where base level is not even.
Features
- It helps effective level composition when base level is not even
- Two wedges are used at the same time as a unit when used horizontally. And the lower part is ribbed and can control level by hitting the side of the wedge.
Dimension
| Model |
Usage |
Material quality |
DIMENSION(mm) |
| A |
B |
C |
| Plastic wedge(L) |
level |
PVC |
25 |
45 |
150 |
| Plastic wedge(S) |
level |
PVC |
13 |
45 |
92 |

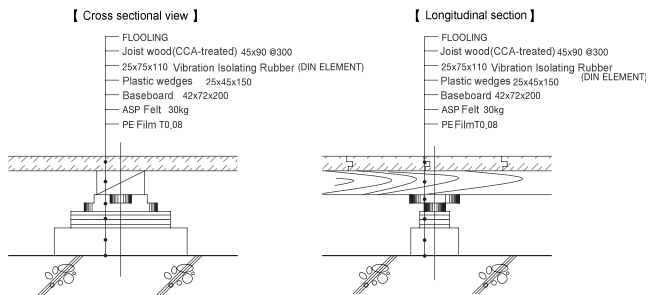

Installation drawing
