DIN ELEMENT
Usage & Applications
Gymnasium, health place, Aerobics center And so on
Product information _ Home > Product > DIN ELEMENT
safely wall rubber panel
Anti Vibration Spring
and Hanger
Vibration Rubber
Vibration Rubber _ Gym, Auditorium
Soundproofing Products
Features
- It is made of rubber chip. Its vibration isolating is excellent as natural frequency is low. Its rebound resilience is over 40% and used best for minimizing transmissibility. Its excellent restoring force affects maximized elastic force.
- Rubber chip is composed of high quality chip except high quality tire.

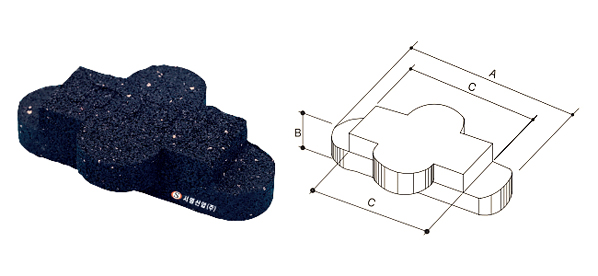

Dimension
| Model | Service loads (kg) | Static displacement(mm) | DIMENSION | ||
|---|---|---|---|---|---|
| A | B | C | |||
| DIN ELEMENT | 27.5 | 2 | 110 | 25 | 75 |

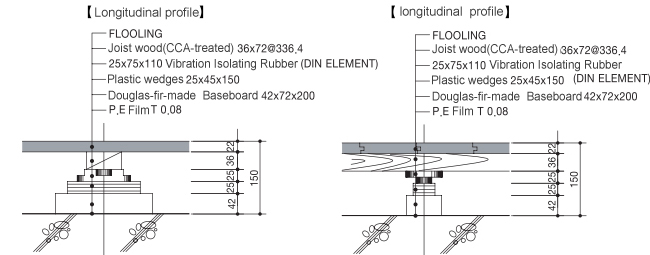

Installation drawing
